Centralized flexible energy storage system HLL Grid-Following Converter
Creatively propose a brand-new energy storage system circuit topology and control architecture to achieve intrinsic safety at the electrical topology level.
Category:
Centralized flexible energy storage system
Keyword:
Energy storage
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
Tel：+86 0592-3752608
Email：wangwei@heespower.com
- Product Description
-
Product Features
High Reliability
Failure of a single battery module does not lead to battery cluster, container shutdown; single component failure does not lead to the shutdown of the entire energy storage system.
Multi-functional
Peak shaving and valley filling, demand-side management, response dispatch; peak regulation and frequency regulation, backup power, black start.
High Efficiency
Zero series capacity loss, zero parallel circulation; comprehensive cycle efficiency reaches 87%~90%.
Low Maintenance
PACK That is Plug That is and ， Play Station No Stop Machine.
High Safety
1. Inherently safe design of electrical topology, PACK level charge and discharge control, avoiding battery operation in overcharge and overdischarge states from the source;
2. Level active fault isolation, preventing faulty or sub-healthy batteries from operating with faults; Level active fault isolation, preventing faulty or sub-healthy batteries from operating with faults;
3. Flexible interconnection within and between battery clusters, full current (≥157A) within and between clusters balancing.

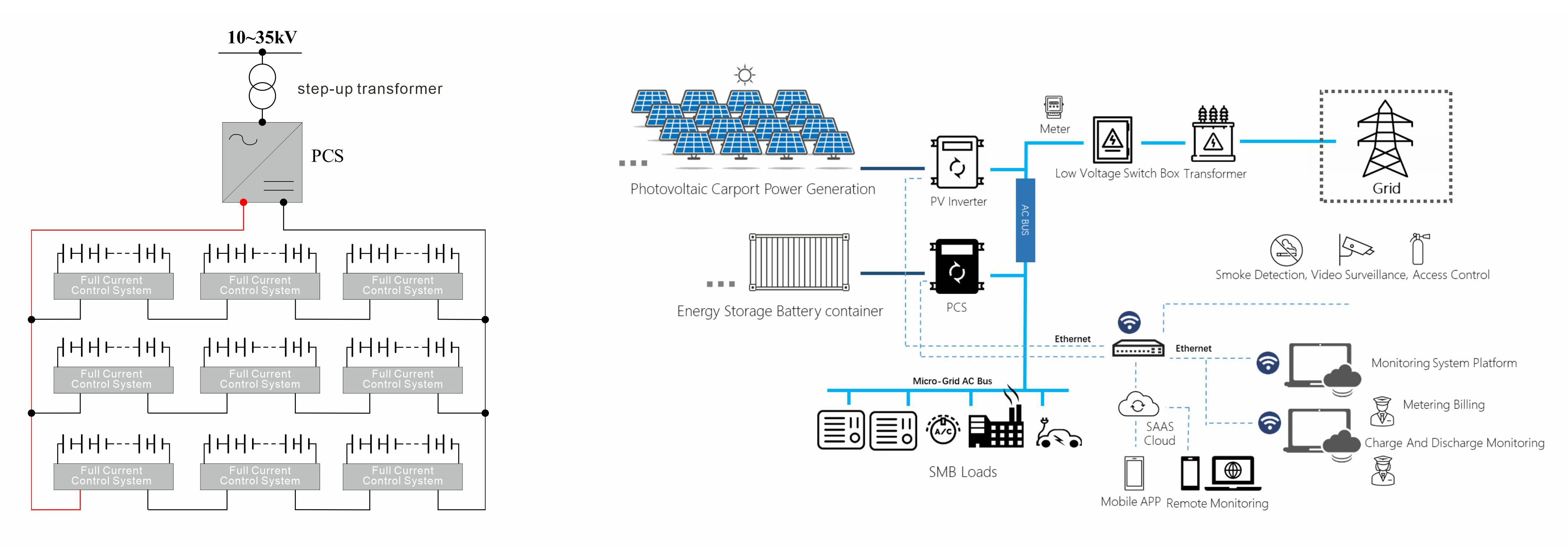

Product System Architecture
Product Technical Specifications
HLL5000-0.5P Series Flexible Energy Storage System Typical Configuration
Product Model
HLL5000-0.5P
Rated Battery Capacity
5.015MWh (a total of 12 battery clusters, each battery cluster 418kWh, configurable to 6~12 battery clusters to achieve 2.5MWh~5MWh)
Rated AC Charge/Discharge Power
2.5MW
Number of Battery Containers
1
Boosting Integrated Unit
1
Battery Container HLL5000 Parameters
Rated Capacity
5015kWh
Depth of Discharge
≥95%
Cell Type
LFP-314Ah
Installation Location
Outdoor
Number of Cells
4992
Protection Level
No less than IP54
Number of Battery PACKs
48
Operating Temperature Range
-30℃~+50℃ (derating above 45℃)
Battery PACK Grouping Method
1P104S
Operating Humidity Range
0%~95% (non-condensing)
Battery PACK Connection Method
Flexibly connected in series via a full-current controller
Maximum Altitude
≤4000m
Balancing Current between Battery PACKs
157A full current balancing
Communication Interface
Fiber optic/CAN/RS485
DC Voltage Range
1019.2V-1497.6V
Cooling Method
Liquid Cooling
Charge and Discharge Rate
≤0.5P
Dimensions (W×D×H)
6538×2700×3100mm
Weight
≤50t
Charge and Discharge State Control Granularity
Each 1P52S battery module is independently controlled
PCS Converter and Booster Integrated Unit Typical Parameters
Rated Power
2.5MW
DC Voltage Range
1000~1500V
Rated Grid Voltage
10-35kVac
Rated Grid-Connected Voltage
690V
Maximum System Efficiency
99.03%
Rated Grid Frequency
50Hz
Protection Level
IP65
Maximum Efficiency
99.03%
Operating Temperature Range
-36~60℃ (>45℃ derating)
Power Factor
>0.99 (>20% load)
Allowable Humidity Range
0~100% (no condensation)
Isolation Method
Transformer Isolation
Operating Altitude
5000m (>3000m derating)
