HLLD Series Direct-connection Flexible Energy Storage System
Creatively propose a brand-new energy storage system circuit topology and control architecture to achieve intrinsic safety at the electrical topology level.
Category:
Directly connected flexible energy storage system
Keyword:
Energy storage
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
Tel：+86 0592-3752608
Email：wangwei@heespower.com
- Product Description
-
Product Features
Large Capacity
Single Unit Capacity 10MWh~70MWh; With strong grid support capability
High Efficiency
Zero series capacity loss, zero parallel circulating current; overall cycle efficiency reaches 87%~90%.
Low Cost
By FCCS board system replaces “ BMS+PCS+ transformer”, significantly reducing system cost.
Low O&M
PACK Plug and play, entire station operates continuously
High Safety
1. Electrical topology intrinsic safety design, PACK level charge and discharge control, fundamentally preventing batteries from operating in overcharge or overdischarge states;
2. PACK level active fault isolation, preventing faulty or sub-healthy batteries from operating with issues;
3. Flexible interconnection within and between battery clusters, full current (≥157A) within and between clusters balancing.

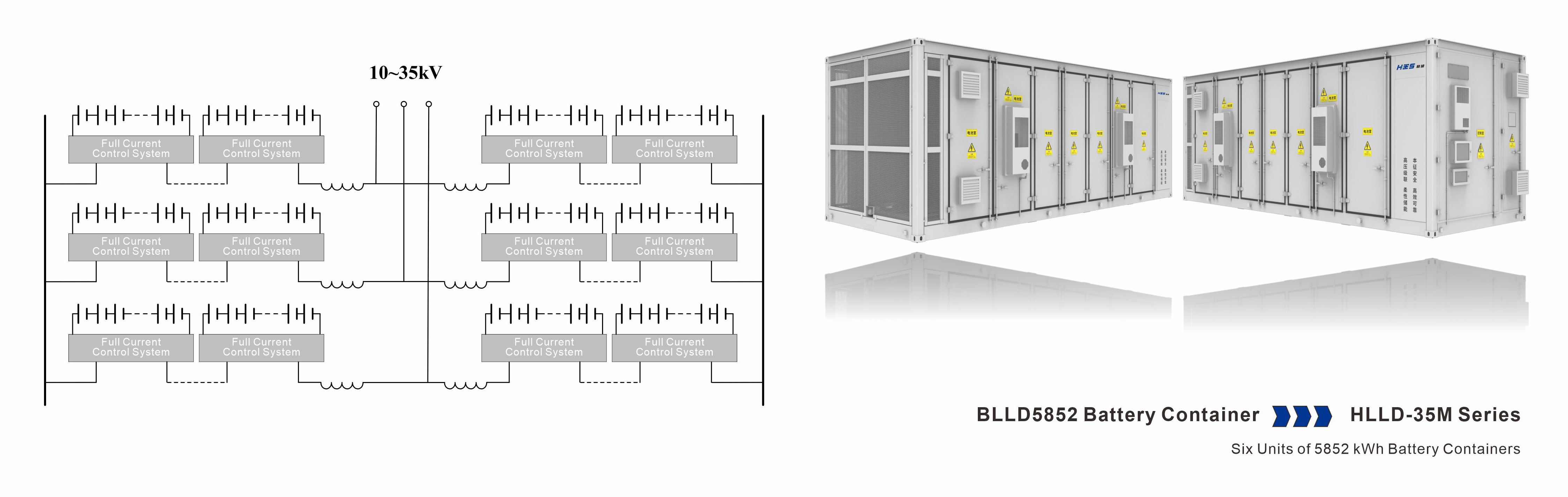

Product System Architecture
Product Technical Specifications
BLLD5852-0.5P Series Flexible Energy Storage System Typical Configuration
Product Model
BLLD5852-0.5P
Nominal Capacity
5.852MWh
Initial Dischargeable Capacity
≥5.55MWh
Voltage Level
35kVac
Battery Container BLLD5852 Parameters
Rated Capacity
5852kWh
Bridge Arm Discharge Depth
≥95%
Cell Type
LFP-314Ah
Battery PACK SOC Operation Deviation
≤2%
Number of Cells
5824
Installation Location
Outdoor
Number of Battery PACKs
56
Protection Class
Not lower than IP54
Battery PACK Grouping Method
1P104S
Corrosion Protection Class
C3/C4/C5 (Customizable)
Battery PACK Connection Method
Flexible series connection via full current controller
Operating Temperature Range
-30℃~+50℃ (Derating above 45℃)
Inter-Battery PACK Balancing Current
≥157A
Operating Humidity Range
0%~95% (Non-condensing)
Rated Current
289.6A
Maximum Altitude
≤4000m
Overload (Current) Capability
1.1 times ≥10min, 1.2 times ≥ 1min
Communication Interface
Fiber Optic/Ethernet
Battery Module Model
PLL1045A-0.5P-H
Cooling Method
Liquid Cooling
Charge/Discharge Rate
≤0.5P
Dimensions (W×D×H)
9200×3250×3450mm
Weight
≤60t
HLLD35M-0.5P Series Flexible Energy Storage System Typical Configuration
Product Model
HLLD35M-0.5P
Nominal Capacity
35.11MWh
Initial Dischargeable Capacity
≥33.3MWh
Rated Output Power
17.56MW
Voltage Level
35kV
Number of Bridge Arms
3
Number of Battery Containers
6 units (BLLD5852-0.5P)
Grid Forming Support Capability
Provides inertia and short-circuit current support, has primary frequency regulation and active voltage regulation functions,
has active damping control function, and has black start capability (≤0.33P system has 3 times/10s overcurrent capability)HLLD35M-0.5P System Parameters
Rated Output Line Current
289.6A
System Cycle Efficiency
≥90% (35kV side)
Active Power Output Range
-17.56MW~+17.56MW
Operating Temperature Range
-30℃~+50℃ (Derating above 45℃)
Reactive Power Output Range
-18.43MVar~+18.43MVar
Operating Humidity Range
0%~95% (Non-condensing)
Rated Capacity
5852kWh
Maximum Altitude
≤4000m
Overload (Current) Capability
1.1 times long-term, 1.2 times ≥1min
Working mode
On-grid, Off-grid
Inter-Battery PACK Balancing Current
≥157A
Is it isolated
Non-isolated
SOC operation deviation between battery packs
≤2%
Protection Class
Not lower than IP54
SOC operation deviation between bridge arms
≤2%
Charge/Discharge Rate
≤0.5P
Installation Location
Outdoor
Communication Interface
Fiber Optic/Ethernet
Corrosion Protection Class
C3/C4/C5 (Customizable)
Cooling Method
Liquid Cooling
Networking function
Available
