Centralized flexible energy storage system full current control system
The pioneering full-current control system achieves super battery management capabilities with granular control down to the PACK level.
Category:
Full current control system
Keyword:
Energy storage
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
这里是占位文字
Tel：+86 0592-3752608
Email：wangwei@heespower.com
- Product Description
-
Product Features
High Reliability
Three-level control architecture.
Module-level control, cluster-level control, and stack-level control, with corresponding control boards being the module controller (FPC, Flexible Pack Controller), cluster control board (FCC, Flexible Cluster Controller) and stack control board (FSC, Flexible Stack Controller) 。
Multifunctional
Module control board: Execution layer, receives real-time instructions from the cluster control level to control and protect the battery module output. The module control board contains power semiconductors and can pass the rated current of the battery cluster;
Cluster control board: Responsible for battery module power balancing within the cluster, battery module fault isolation, cluster current closed-loop control, etc., as the control unit;
Stack control board: Achieves inter-cluster balancing, inter-cluster circulating current suppression, and cluster fault isolation.
Product System Architecture

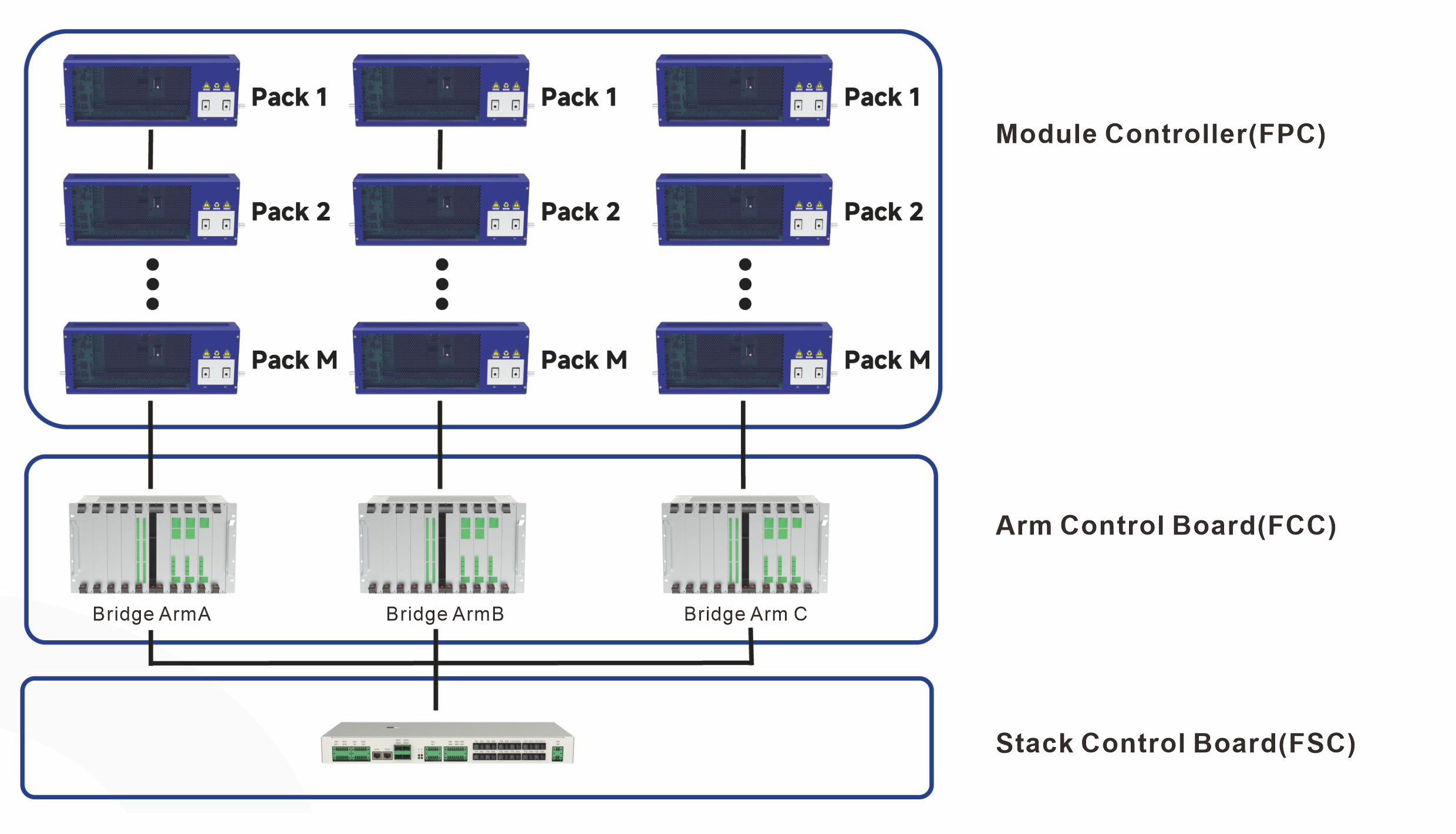

FCCS-1.0 Product System Architecture
FCCS-2.0 Product System Architecture
Product Technical Specifications
Full Current Control System Specifications
FPC Rated Output Power
52.25KW
FPC Input Voltage
<374.4V
Rated Charge and Discharge Current
157A
Rated Operating Voltage
322.8V
Operating Voltage Range
291.2-374.4V
1.1 times overload
Long-term operation
1.2 times overload
≥2min
1.5 times overload
≥1min
3 times overload
≥10s
FPC Charge and Discharge Efficiency
≥99.5%
FPC Control Section Loss
≤16W
Active Balancing Current
≥157A
Operating Temperature Range
-30℃~50℃
Humidity
0-95%(Non-condensing)
Heat Dissipation Method
Liquid Cooling
Application Altitude
≤2000m
Full Current Control System Specifications
FPC Input Voltage Range (AC Side)
205.9Vrms~264.7Vrms
FPC Output Voltage Range (DC Side)
260V-395.2V
Rated Input Current (AC Side)
289.6Arms
Rated Active Power
52.25kW
1.1 times overload
>10min
1.2 times overload AC side current
350Arms, >1min
1.2 times overload maximum active power
62.7kW
Rated Output AC Side Current
289.6 Arms
Rated Output Voltage (AC Side)
180.4Vrms/50Hz
DC Side Input Voltage Range
291.2V-374.4V (Operating Range); 260V-395.2V (Limit Range)
FPC Charge and Discharge Efficiency
≥99.2%
Active Balancing Current
≥157A
Operating Temperature Range
-30℃~50℃, >45℃ derating operation
Humidity
≤95%, Non-condensing
Heat Dissipation Method
Liquid cooling
Application Altitude
≤2000m
